element <commodityPerformanceSwap> (global)

Namespace:	http://www.fpml.org/FpML-5/transparency
Type:	CommodityPerformanceSwap
Content:	complex, 1 attribute, 10 elements
Subst.Gr:	substitutes for product
Defined:	globally in fpml-com-5-13.xsd; see XML source
Used:	never

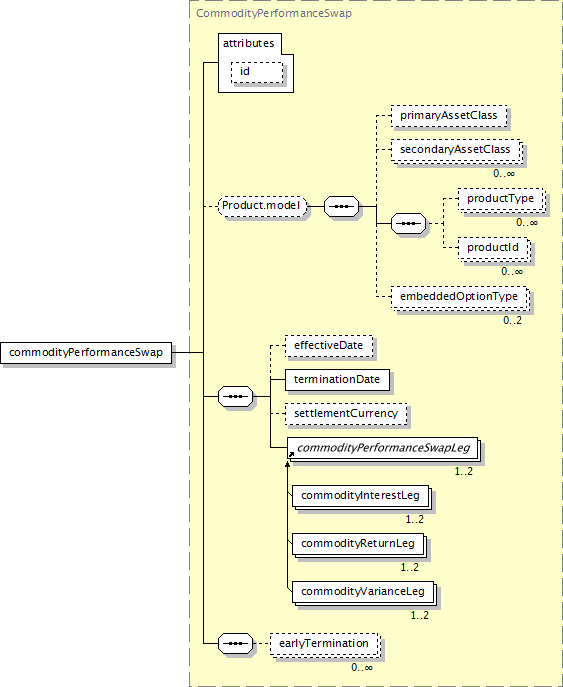

Component Diagram

XML Representation Summary

<commodityPerformanceSwap

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, embeddedOptionType[0..2])?, effectiveDate?, terminationDate, settlementCurrency?, commodityPerformanceSwapLeg[1..2], earlyTermination*

</commodityPerformanceSwap>

Content model elements (10):

commodityPerformanceSwapLeg,

earlyTermination (in commodityPerformanceSwap),

effectiveDate (in commodityPerformanceSwap),

embeddedOptionType,

primaryAssetClass (defined in Product.model group),

productId,

productType (defined in Product.model group),

secondaryAssetClass,

settlementCurrency (in commodityPerformanceSwap),

terminationDate (in commodityPerformanceSwap)

May contain elements by substitutions (3):

commodityInterestLeg, commodityReturnLeg, commodityVarianceLeg

May be included in elements by substitutions (11):

trade (defined in TradingEventsBase.model group),

trade (in affectedTransactions),

trade (in amendment),

trade (in dataDocument),

trade (in publicDisclosure),

trade (in withdrawal)

Annotation

A swap the payoff of which is linked to the performance of the underlying asset. Examples of potential performance features are return, correlation, covariance, variance and volatility.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="commodityPerformanceSwap" substitutionGroup="product" type="CommodityPerformanceSwap"/>
