complexType "AbstractFacilityRateChangeEvent"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 14 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 3 locations

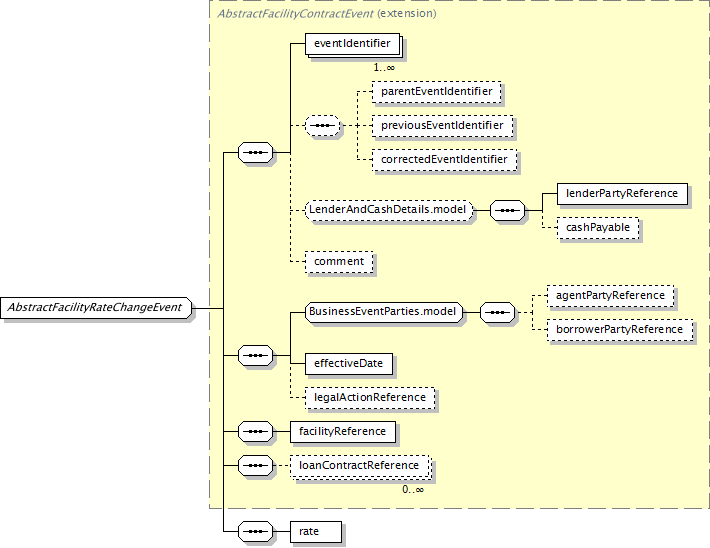

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, facilityReference, loanContractReference*, rate
</...>
Content Model Elements (14):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
effectiveDate (defined in AbstractLoanServicingEvent complexType),
eventIdentifier (defined in AbstractLoanEvent complexType),
facilityReference (defined in AbstractFacilityEvent complexType),
legalActionReference (defined in AbstractLoanServicingEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
loanContractReference (defined in AbstractFacilityContractEvent complexType),
parentEventIdentifier,
previousEventIdentifier,
rate (defined in AbstractFacilityRateChangeEvent complexType)
Known Direct Subtypes (3):
DefaultRateChange, MandatoryCostRateChange, PenaltyRateChange
All Direct / Indirect Based Elements (3):
defaultRateChange, mandatoryCostRateChange, penaltyRateChange
Known Usage Locations
Annotation
An abstract type describing changes in a facility-level rate.
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanServicingEvent (extension)
      AbstractFacilityEvent (extension)
          AbstractFacilityContractEvent (extension)
              AbstractFacilityRateChangeEvent
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="true" name="AbstractFacilityRateChangeEvent">
<xsd:complexContent>
<xsd:extension base="AbstractFacilityContractEvent">
<xsd:sequence>
<xsd:element name="rate" type="PeriodRate"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/14)
rate
Type:
PeriodRate, complex content
This represents a 'surcharge' rate that may apply in addition to a regular margin (on outstanding loan contracts).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="rate" type="PeriodRate"/>
