complexType "AbstractFacilityContractEvent"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 13 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 4 locations

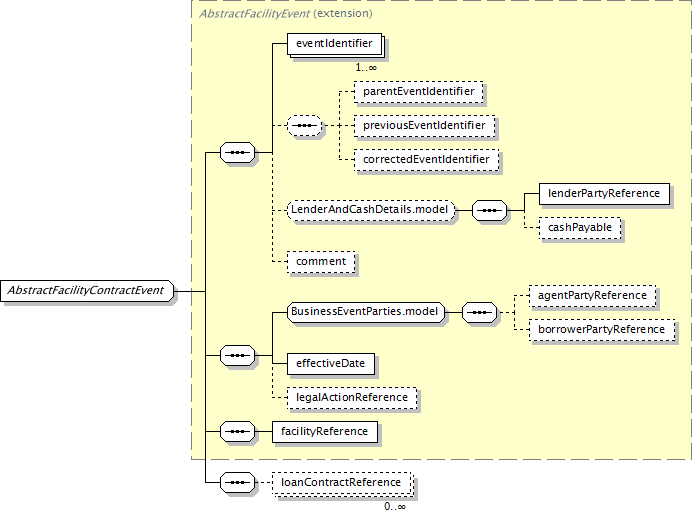

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, facilityReference, loanContractReference*
</...>
Content Model Elements (13):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
effectiveDate (defined in AbstractLoanServicingEvent complexType),
eventIdentifier (defined in AbstractLoanEvent complexType),
facilityReference (defined in AbstractFacilityEvent complexType),
legalActionReference (defined in AbstractLoanServicingEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
loanContractReference (defined in AbstractFacilityContractEvent complexType),
parentEventIdentifier,
previousEventIdentifier
Known Direct Subtypes (4):
AbstractFacilityRateChangeEvent, DefaultRateExpiry, MandatoryCostRateExpiry, PenaltyRateExpiry
Known Indirect Subtypes (3):
DefaultRateChange, MandatoryCostRateChange, PenaltyRateChange
All Direct / Indirect Based Elements (6):
defaultRateChange, defaultRateExpiry, mandatoryCostRateChange, mandatoryCostRateExpiry, penaltyRateChange, penaltyRateExpiry
Known Usage Locations
Annotation
An abstract base type for all facility and optionally contract-level business events.
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanServicingEvent (extension)
      AbstractFacilityEvent (extension)
          AbstractFacilityContractEvent
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="true" name="AbstractFacilityContractEvent">
<xsd:complexContent>
<xsd:extension base="AbstractFacilityEvent">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="loanContractReference" type="LoanContractReference"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/13)
loanContractReference
Type:
LoanContractReference, empty content
A loan contract reference structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="loanContractReference" type="LoanContractReference"/>
