complexType "PenaltyRateExpiry"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 13 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
at 1 location

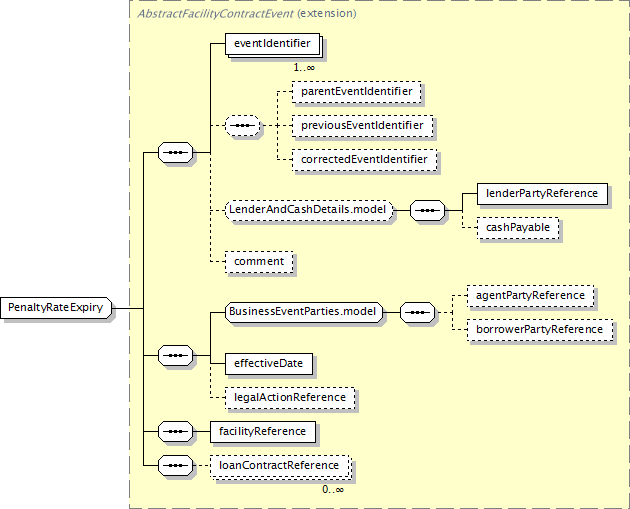

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, facilityReference, loanContractReference*
</...>
Content Model Elements (13):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
effectiveDate (defined in AbstractLoanServicingEvent complexType),
eventIdentifier (defined in AbstractLoanEvent complexType),
facilityReference (defined in AbstractFacilityEvent complexType),
legalActionReference (defined in AbstractLoanServicingEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
loanContractReference (defined in AbstractFacilityContractEvent complexType),
parentEventIdentifier,
previousEventIdentifier
All Direct / Indirect Based Elements (1):
penaltyRateExpiry
Known Usage Locations
Annotation
An event representing expiration of the penalty rate.
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanServicingEvent (extension)
      AbstractFacilityEvent (extension)
          AbstractFacilityContractEvent (extension)
              PenaltyRateExpiry
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="PenaltyRateExpiry">
<xsd:complexContent>
<xsd:extension base="AbstractFacilityContractEvent"/>
</xsd:complexContent>
</xsd:complexType>
