complexType "LoanLegalActionNotification"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 30 elements
Defined:	globally in fpml-loan-5-13.xsd; see XML source
Includes:	definitions of 10 elements
Used:	at 1 location

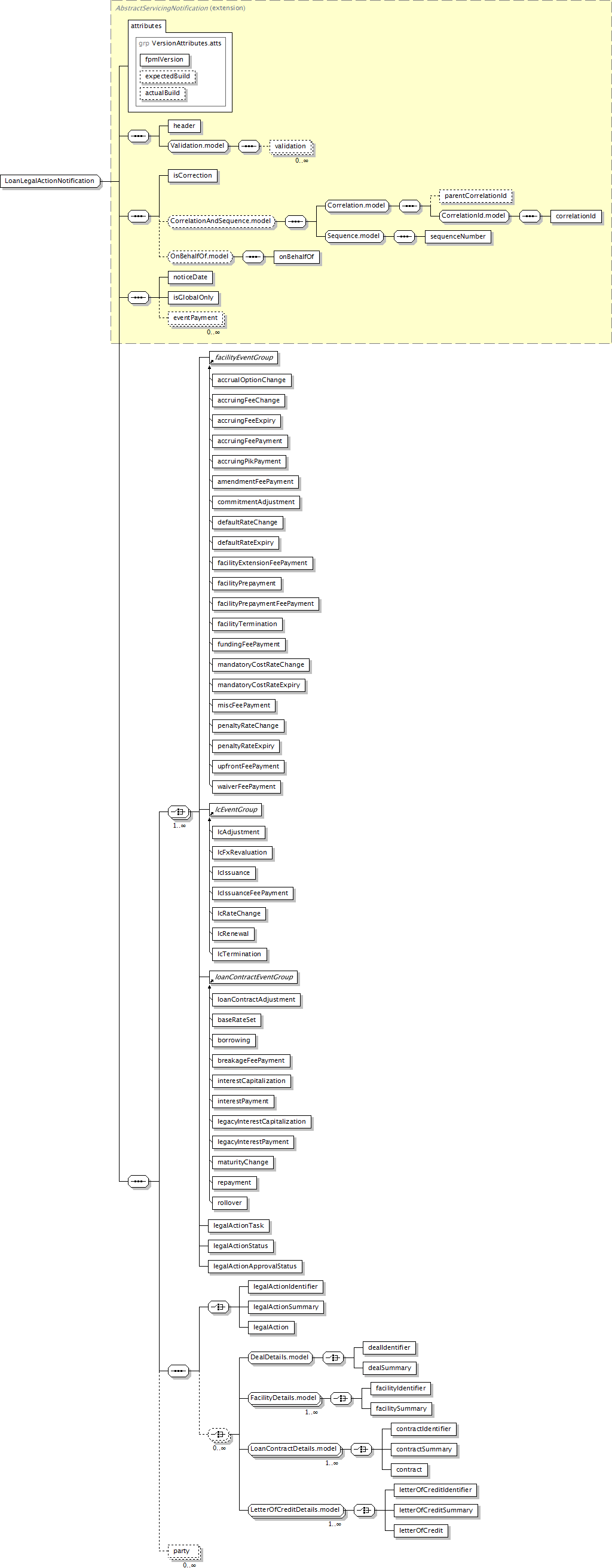

Component Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

Content:

</...>

Content Model Elements (30):

contract (defined in LoanContractDetails.model group),

contractIdentifier,

contractSummary,

correlationId,

dealIdentifier (defined in DealDetails.model group),

dealSummary,

eventPayment,

facilityEventGroup,

facilityIdentifier (defined in FacilityDetails.model group),

facilitySummary,

header (defined in RequestMessage complexType),

isCorrection,

isGlobalOnly,

lcEventGroup,

legalAction (in loanLegalActionNotification),

legalActionApprovalStatus,

legalActionIdentifier,

legalActionStatus,

legalActionSummary,

legalActionTask,

letterOfCredit (defined in LetterOfCreditDetails.model group),

letterOfCreditIdentifier,

letterOfCreditSummary,

loanContractEventGroup,

noticeDate (defined in AbstractServicingNotification complexType),

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

party (in loanLegalActionNotification),

sequenceNumber (defined in Sequence.model group),

validation

All Direct / Indirect Based Elements (1):

loanLegalActionNotification

Known Usage Locations

As direct type of elements (1):

loanLegalActionNotification

Annotation

A loan servicing notification which can be used to communicate any legal action-related servicing event.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

AbstractServicingNotification (extension)

LoanLegalActionNotification

XML Source (w/o annotations (5); see within schema source)

<xsd:complexType name="LoanLegalActionNotification">

<xsd:complexContent>

<xsd:extension base="AbstractServicingNotification">

<xsd:sequence>

<xsd:choice maxOccurs="unbounded">

<xsd:element ref="facilityEventGroup"/>

<xsd:element ref="lcEventGroup"/>

<xsd:element ref="loanContractEventGroup"/>

<xsd:element name="legalActionTask" type="LoanLegalActionTask"/>

<xsd:element name="legalActionStatus" type="LoanLegalActionStatus"/>

<xsd:element name="legalActionApprovalStatus" type="LoanLegalActionApprovalStatus"/>

</xsd:choice>

<xsd:sequence>

<xsd:choice>

<xsd:element name="legalActionIdentifier" type="LegalActionIdentifier"/>

<xsd:element name="legalActionSummary" type="LoanLegalActionSummary"/>

<xsd:element name="legalAction" type="LoanLegalAction"/>

</xsd:choice>

<xsd:choice maxOccurs="unbounded" minOccurs="0">

<xsd:group ref="DealDetails.model"/>

<xsd:group maxOccurs="unbounded" ref="FacilityDetails.model"/>

<xsd:group maxOccurs="unbounded" ref="LoanContractDetails.model"/>

<xsd:group maxOccurs="unbounded" ref="LetterOfCreditDetails.model"/>

</xsd:choice>

</xsd:sequence>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="party" type="Party"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 10/30)

facilityEventGroup

Type:	AbstractFacilityEvent, complex content
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	substituted with 21 elements

XML Source (see within schema source)

<xsd:element ref="facilityEventGroup"/>

lcEventGroup

Type:	AbstractLcEvent, complex content
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	substituted with 7 elements

XML Source (see within schema source)

<xsd:element ref="lcEventGroup"/>

legalAction

Type:

LoanLegalAction, complex content

XML Source (see within schema source)

<xsd:element name="legalAction" type="LoanLegalAction"/>

legalActionApprovalStatus

Type:

LoanLegalActionApprovalStatus, complex content

A structure that provides global level approval status on a legal action.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="legalActionApprovalStatus" type="LoanLegalActionApprovalStatus"/>

legalActionIdentifier

Type:

LegalActionIdentifier, complex content

XML Source (see within schema source)

<xsd:element name="legalActionIdentifier" type="LegalActionIdentifier"/>

legalActionStatus

Type:

LoanLegalActionStatus, complex content

A structure to describe the overall status of the loan legal action.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="legalActionStatus" type="LoanLegalActionStatus"/>

legalActionSummary

Type:

LoanLegalActionSummary, complex content

XML Source (see within schema source)

<xsd:element name="legalActionSummary" type="LoanLegalActionSummary"/>

legalActionTask

Type:

LoanLegalActionTask, complex content

A structure that details tasks and their statuses, the completion of which are prerequisites to a legal action.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="legalActionTask" type="LoanLegalActionTask"/>

loanContractEventGroup

Type:	AbstractLoanServicingEvent, complex content
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	substituted with 11 elements

XML Source (see within schema source)

<xsd:element ref="loanContractEventGroup"/>

party

Type:

Party, complex content

A legal entity or a subdivision of a legal entity.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="party" type="Party"/>
